Plot a lake’s geometries from multiple Lake/River Single Pass products
In this notebook, we show how to read the SWOT-HR River or Lake Single Pass vector products with geopandas and dask geopandas and how to represent a variable in time. The example is based on Lake Single Pass Prior products, but it would be the same methodology for all vector products relying on a feature ID
Libraries
[1]:
import glob
import numpy as np
import geopandas as gpd
from tqdm import tqdm
from dask import dataframe as dd
import dask_geopandas as dgpd
from datetime import datetime as dt
Select all Lake Single-Pass products within our directory
Filter by filename pattern
[2]:
filename_list = glob.glob("../docs/data/swot/SWOT_L2_HR_LakeSP_Prior/*PIC0_01/*PIC0_01.zip")
print(len(filename_list))
# one can use zip files, but note it is slower
49
Load all data
[3]:
def load_layers(files):
ddf = None
for file in tqdm(files):
gdf = gpd.read_file(
file,
engine='pyogrio',
use_arrow=True,
)
ddf_tmp = dgpd.from_geopandas(gdf, chunksize=10000)
if ddf is None:
ddf = ddf_tmp
else:
ddf = dd.concat([ddf, ddf_tmp ], ignore_order=True)
del ddf_tmp, gdf
return ddf
[4]:
ddf = load_layers(filename_list)
ddf
100%|██████████| 49/49 [00:38<00:00, 1.27it/s]
[4]:
lake_id | reach_id | obs_id | overlap | n_overlap | time | time_tai | time_str | wse | wse_u | wse_r_u | wse_std | area_total | area_tot_u | area_detct | area_det_u | layovr_val | xtrk_dist | ds1_l | ds1_l_u | ds1_q | ds1_q_u | ds2_l | ds2_l_u | ds2_q | ds2_q_u | quality_f | dark_frac | ice_clim_f | ice_dyn_f | partial_f | xovr_cal_q | geoid_hght | solid_tide | load_tidef | load_tideg | pole_tide | dry_trop_c | wet_trop_c | iono_c | xovr_cal_c | lake_name | p_res_id | p_lon | p_lat | p_ref_wse | p_ref_area | p_date_t0 | p_ds_t0 | p_storage | geometry | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
npartitions=165 | |||||||||||||||||||||||||||||||||||||||||||||||||||
string | string | string | string | string | float64 | float64 | string | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | int32 | float64 | int32 | int32 | int32 | int32 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | float64 | string | int32 | float64 | float64 | float64 | float64 | string | float64 | float64 | geometry | |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
[32]:
ddf.lake_id.compute()
[32]:
0 2210007102
1 2210007142
2 2210007192
3 2210007522
4 2230000012
...
33951 2230021903
33952 2830061673
33953 2940020732
33954 2220006512
33955 2220008312
Name: lake_id, Length: 1456270, dtype: string
Focus on our lake of interest
If you do not know the ID of your lake of interest, you can get it the SWOT Prior Lake Database. This database can be viewed and/or downloaded from the hydroweb.next platform. You will find the SWOT Prior Lake Database (PLD) among the ‘Results’ from hydroweb.next. If you do not want to download it, click on “+Project” icon to add it to your project and click on the “EYE” icon to display this vector layer into the current map selection. Note that you may have to place this product on top of the products in your “Project” panel or unselect the “EYE” icon of the other products, in order to view the PLD layer on the map. On the map click inside the water body of interest (here the “river-lake” we are studying) and you will see more details about it in the ‘Select’ panel.
[59]:
MY_LAKE_ID = '2940022112'
MY_LAKE_ID = '2940021962'
df_vs = ddf[ddf['lake_id'] == MY_LAKE_ID].compute()
# Interpreting the dates as dates with the datetime library
df_vs['date'] = df_vs['time_str'].apply(
lambda t: np.nan if t =='no_data' else dt.fromisoformat(t.strip('Z'))
)
# sorting values based on dated
df_vs.sort_values('date', inplace=True)
# interpreting NaNs (shapefiles have no system to identify fillvalues)
df_vs = df_vs[df_vs['wse']>-1e10]
df_vs
[59]:
lake_id | reach_id | obs_id | overlap | n_overlap | time | time_tai | time_str | wse | wse_u | ... | p_res_id | p_lon | p_lat | p_ref_wse | p_ref_area | p_date_t0 | p_ds_t0 | p_storage | geometry | date | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24386 | 2940021962 | no_data | 294094R099897 | 0 | 1 | 7.617207e+08 | 7.617207e+08 | 2024-02-20T05:05:48Z | 117.685 | 0.791 | ... | -99999999 | 44.416265 | 34.690836 | -1.000000e+12 | 119.034902 | no_data | -1.000000e+12 | -1.000000e+12 | MULTIPOLYGON (((44.56503 34.55532, 44.56499 34... | 2024-02-20 05:05:48 |
19967 | 2940021962 | no_data | 294094L099732;294094L099863;294094L099955;2940... | 42;1;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0... | 58 | 7.626653e+08 | 7.626653e+08 | 2024-03-02T03:28:37Z | 113.316 | 0.030 | ... | -99999999 | 44.416265 | 34.690836 | -1.000000e+12 | 119.034902 | no_data | -1.000000e+12 | -1.000000e+12 | MULTIPOLYGON (((44.34098 34.84831, 44.34081 34... | 2024-03-02 03:28:37 |
27266 | 2940021962 | no_data | 294094L099739;294094L099973;294094L099832;2940... | 42;1;1;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0... | 60 | 7.644680e+08 | 7.644680e+08 | 2024-03-23T00:13:40Z | 114.799 | 0.053 | ... | -99999999 | 44.416265 | 34.690836 | -1.000000e+12 | 119.034902 | no_data | -1.000000e+12 | -1.000000e+12 | MULTIPOLYGON (((44.26363 34.82676, 44.26342 34... | 2024-03-23 00:13:40 |
11426 | 2940021962 | no_data | 294094L099894;294094L099975;294094L099435;2940... | 42;1;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0... | 57 | 7.680734e+08 | 7.680734e+08 | 2024-05-03T17:43:47Z | 119.463 | 0.120 | ... | -99999999 | 44.416265 | 34.690836 | -1.000000e+12 | 119.034902 | no_data | -1.000000e+12 | -1.000000e+12 | MULTIPOLYGON (((44.27089 34.81043, 44.27067 34... | 2024-05-03 17:43:47 |
8346 | 2940021962 | no_data | 294094L099811;294094L099884;294094L099963;2940... | 42;1;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0;0... | 44 | 7.698761e+08 | 7.698761e+08 | 2024-05-24T14:28:53Z | 113.857 | 0.021 | ... | -99999999 | 44.416265 | 34.690836 | -1.000000e+12 | 119.034902 | no_data | -1.000000e+12 | -1.000000e+12 | MULTIPOLYGON (((44.33459 34.84880, 44.33441 34... | 2024-05-24 14:28:53 |
5 rows × 52 columns
[60]:
ax = df_vs.plot(
column='wse',
figsize=(12,8),
cmap='viridis',
alpha=.5,
legend=True,
facecolor='None',
)
ax.set_axis_off()
ax.set_title(f'Water Level (m) for Lake ID {MY_LAKE_ID}')

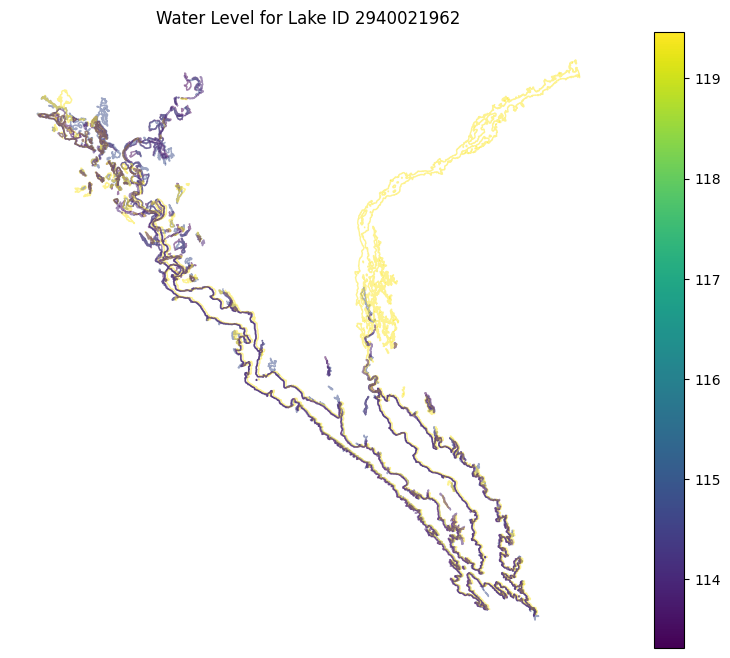

[60]:
Text(0.5, 1.0, 'Water Level for Lake ID 2940021962')
[ ]:
